Power Awareness Device

Getting Started Guide

Before You Get Started

Please do not plug in this device until directed to do so by the instructions.

Getting Started

Step 1: Have the following:

  • User id and password for your DTE customer account
  • WiFi network name and password

Your DTE customer account is what you will use to log into the DTE Power Awareness Device application.

Step 2: Download and Install

Download and install the DTE Power Awareness app from the Apple App Store or the Google Play Store.

After the app is installed, launch the app and login.

Step 3: Add Device

Start the process of adding your Power Awareness Device (PAD) to the meter.

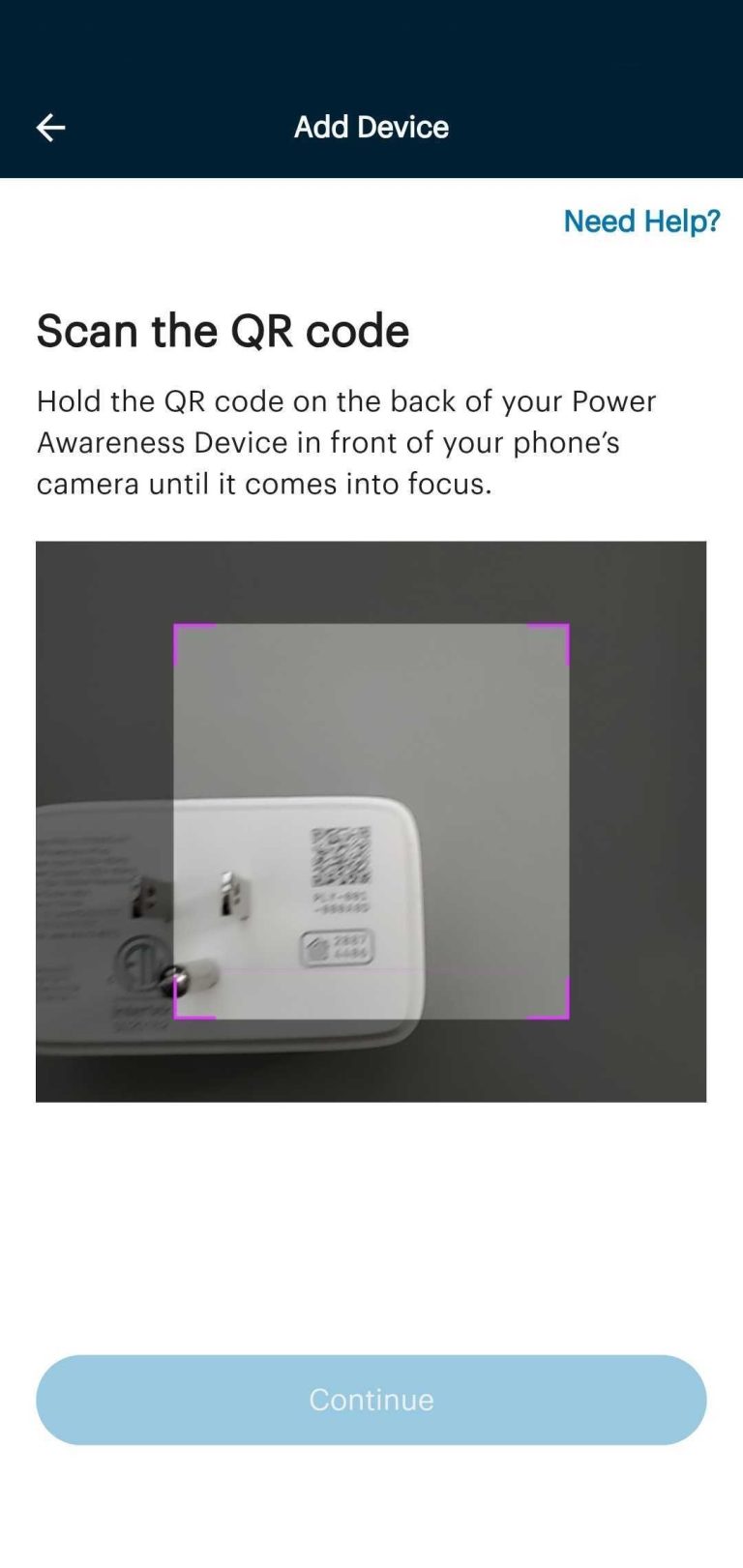

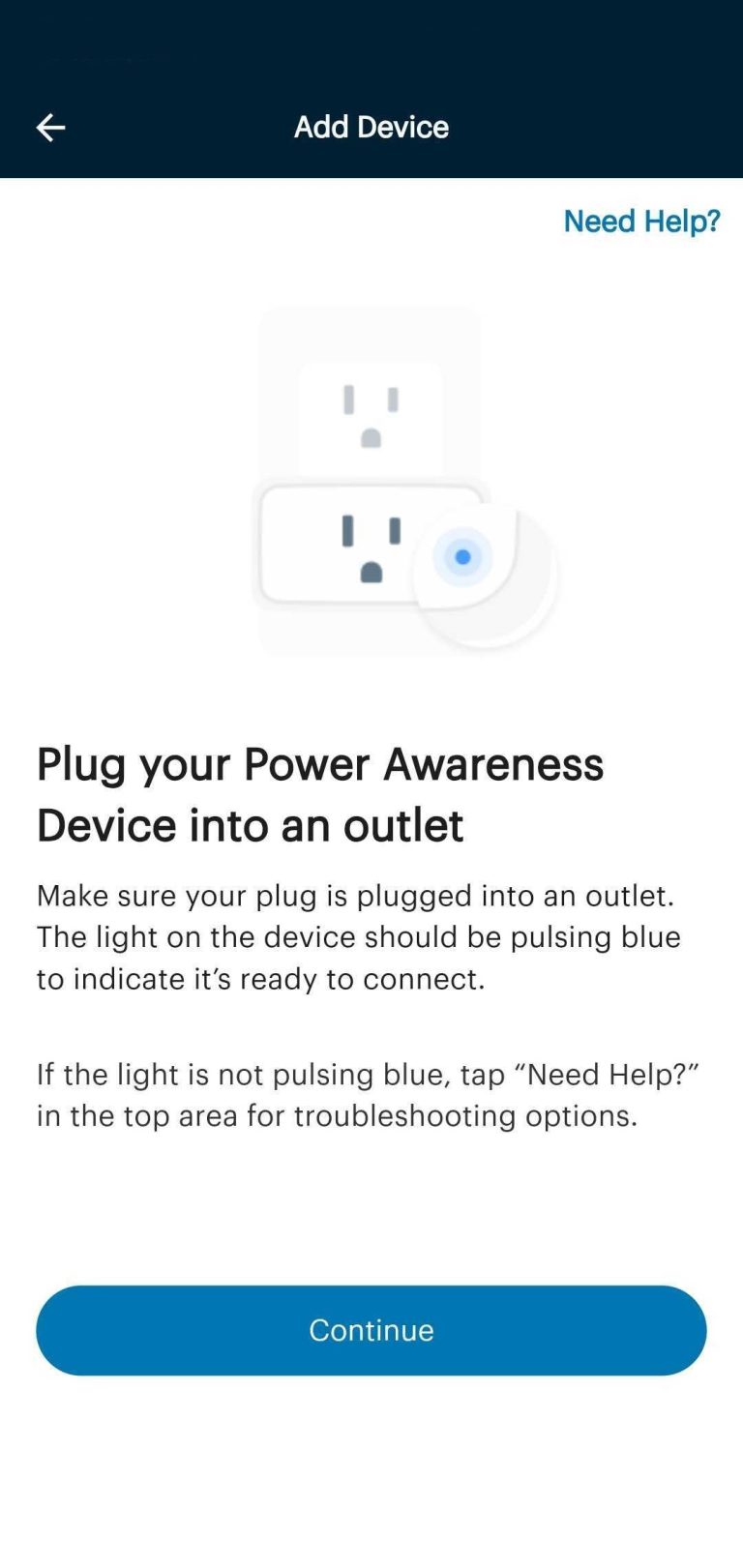

Step 4: Scan and Plug In

Scan the QR code on the back of the PAD device. After scanning, plug the PAD into a wall socket close to your DTE meter that also has good cell reception.

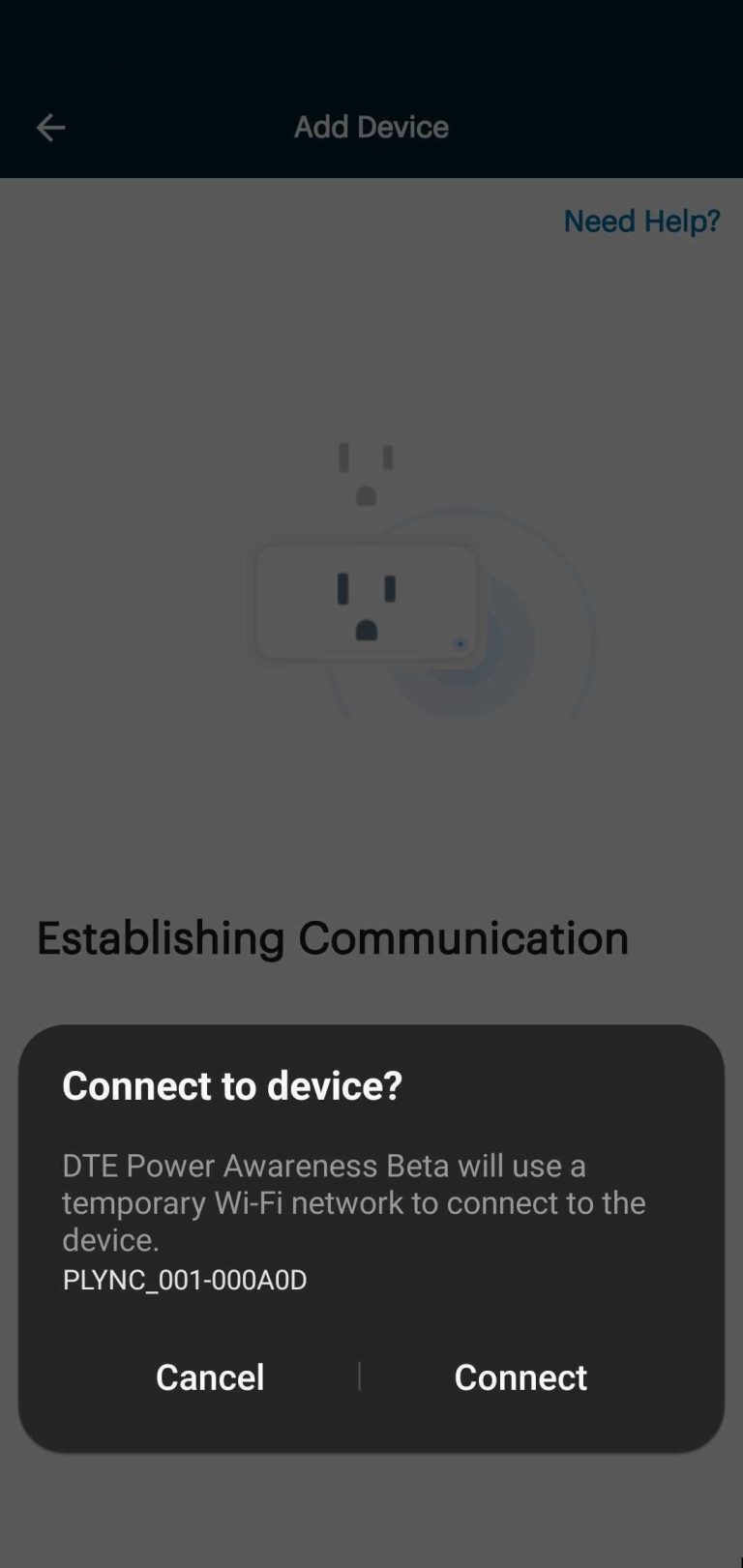

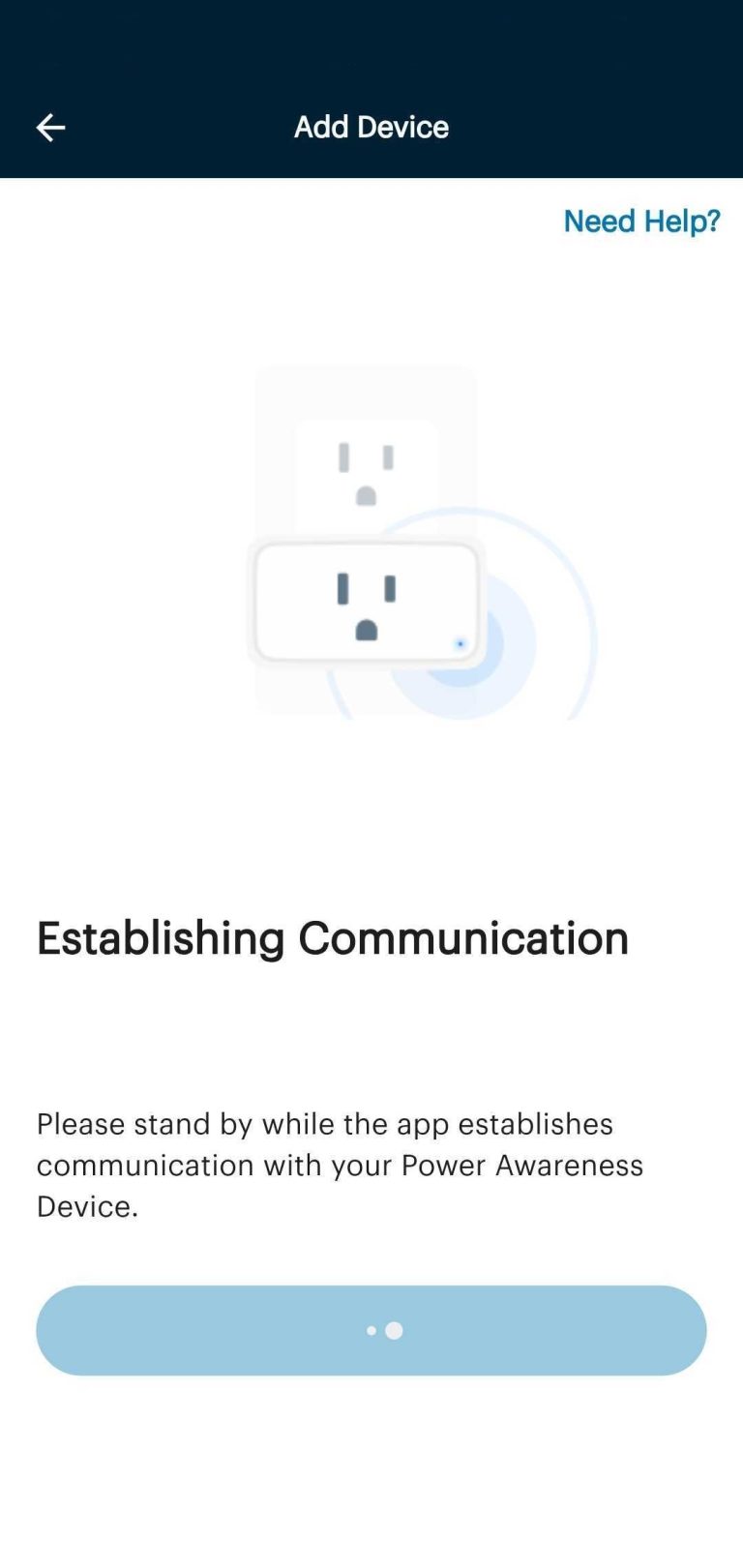

Step 5: Join PAD Device

Please tap the “Join” or “Connect” option, allowing the phone to establish communication with the PAD. This may take a few minutes.

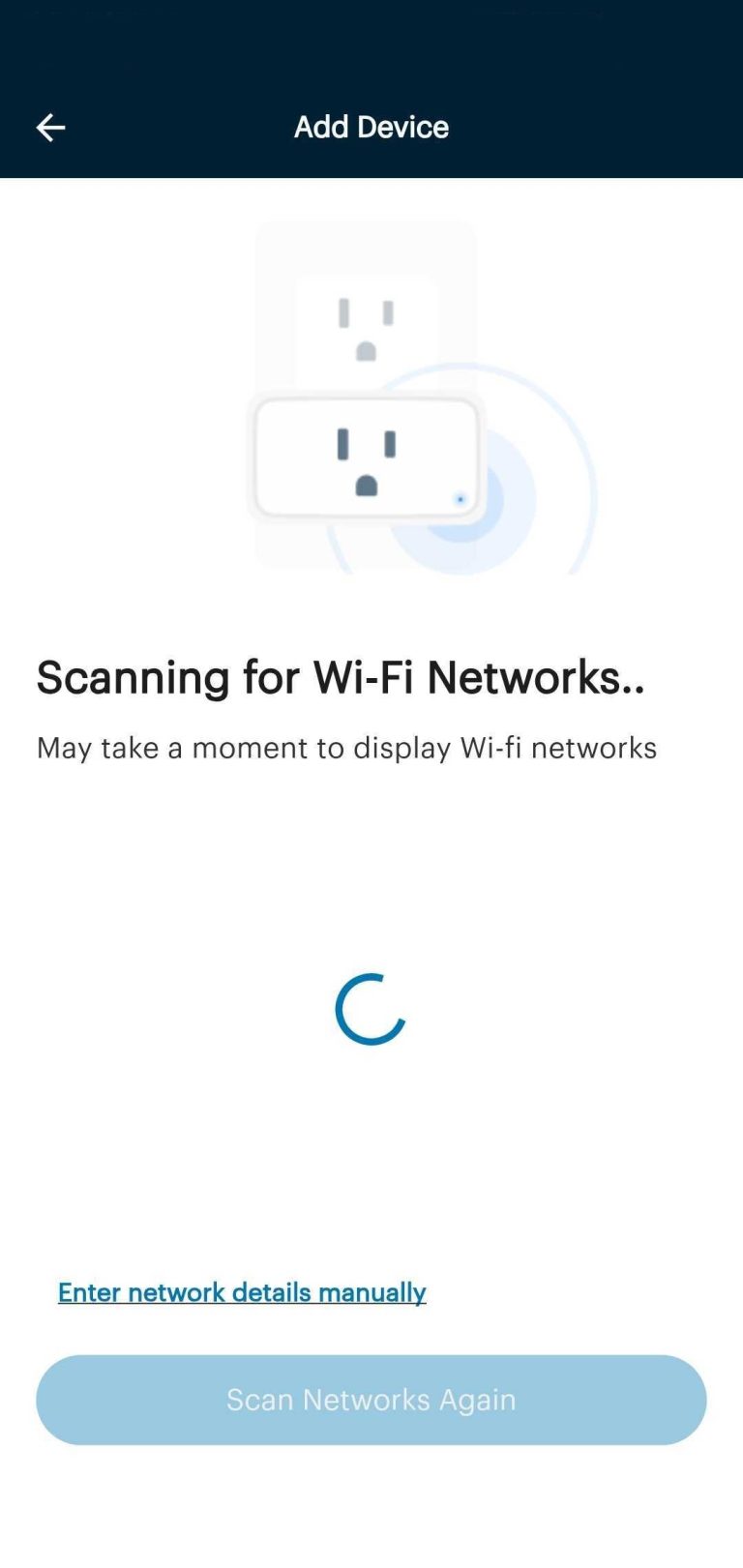

Step 6: Connect to WiFi

Join the PAD to your WiFi network by selecting your WiFi identifier from the list and entering in your WiFi password. This will take a few minutes as well.

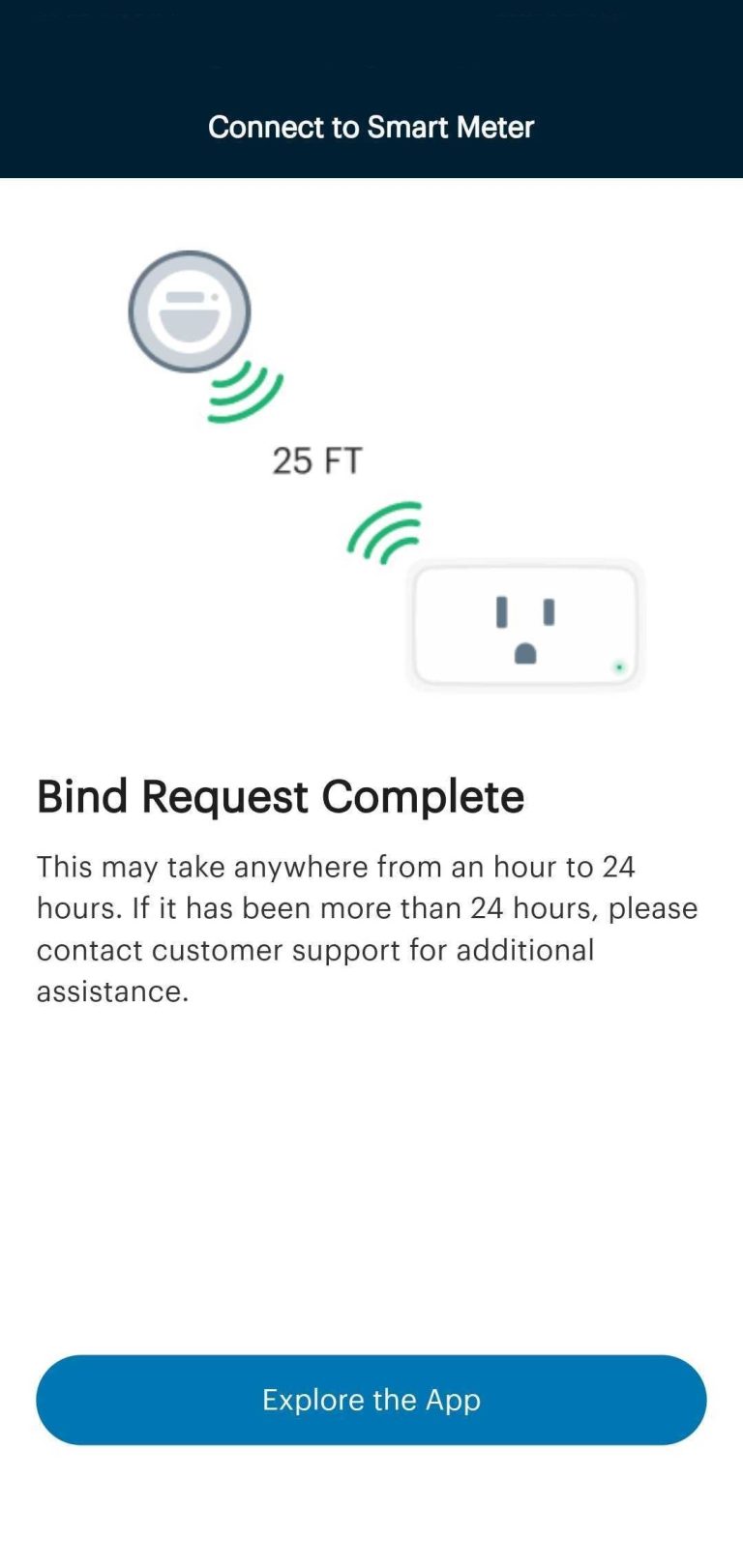

Finishing up

The device will automatically connect to the meter and let you know when that process is complete. It may take up to 24 hours to bind to your meter, but it will most likely take less than 5 minutes. When it is done, the lights on the front of the device will turn green.

Troubleshooting

If you are unable to connect your PAD with the app:

The PAD most likely went into “sleep” mode because it wasn’t connected to the WiFi within 10 minutes of being plugged in.

Unplug it from the wall and wait until the lights turn off (this should take less than 10 minutes). At this point, plug the PAD back into the wall and try to connect again with the app.

If one or both lights do not turn solid green:

If the lights do not both turn green, either the device could not connect to the meter or the cell network.

If the Meter Light (left) does not turn solid green, then the device did not successfully connect to the meter.

Start by finding a socket closet to the meter and moving the PAD.

If Cellular Light (right) does not turn green, the device does not have the best connection to the cellular network. If the light is blinking red it was not able to connect at all. If the light is solid red, it has a very bad signal. If the light is solid yellow it has a poor signal. Start by finding a socket close to the meter that has a good cellular signal and move the PAD.

If the lights do not turn green after 10 minutes of being in the new location, please contact support.

DTE Customer Support:

313.450.9565



If the device never finds the WiFi network:

Please check to ensure your wireless network supports 2.4GHz. The PAD will only connect to a 2.4GHz network.

If your network supports 2.4GHz, try moving the PAD close to the access point or use a WiFi extender. Moving the device away from the meter may interfere with the connection to the meter as well.



Factory resetting the device:

The button on the side of the device will reset the device and restart the add device process. Please do not reset the device unless instructed by support.

Need help? Please contact DTE Customer Support at 313.450.9565

Product Information

Specifications
Input
120V~, 60Hz, 15A
Output
120V~, 60Hz, 15A, 1800W (Resistive), 1/2HP
Power Consumption
<1W
Operational Temperature
0°C – 40°C
Radio Protocol
Zigbee, 2.4G WiFi
Range
About 40m indoors (depending on building material)

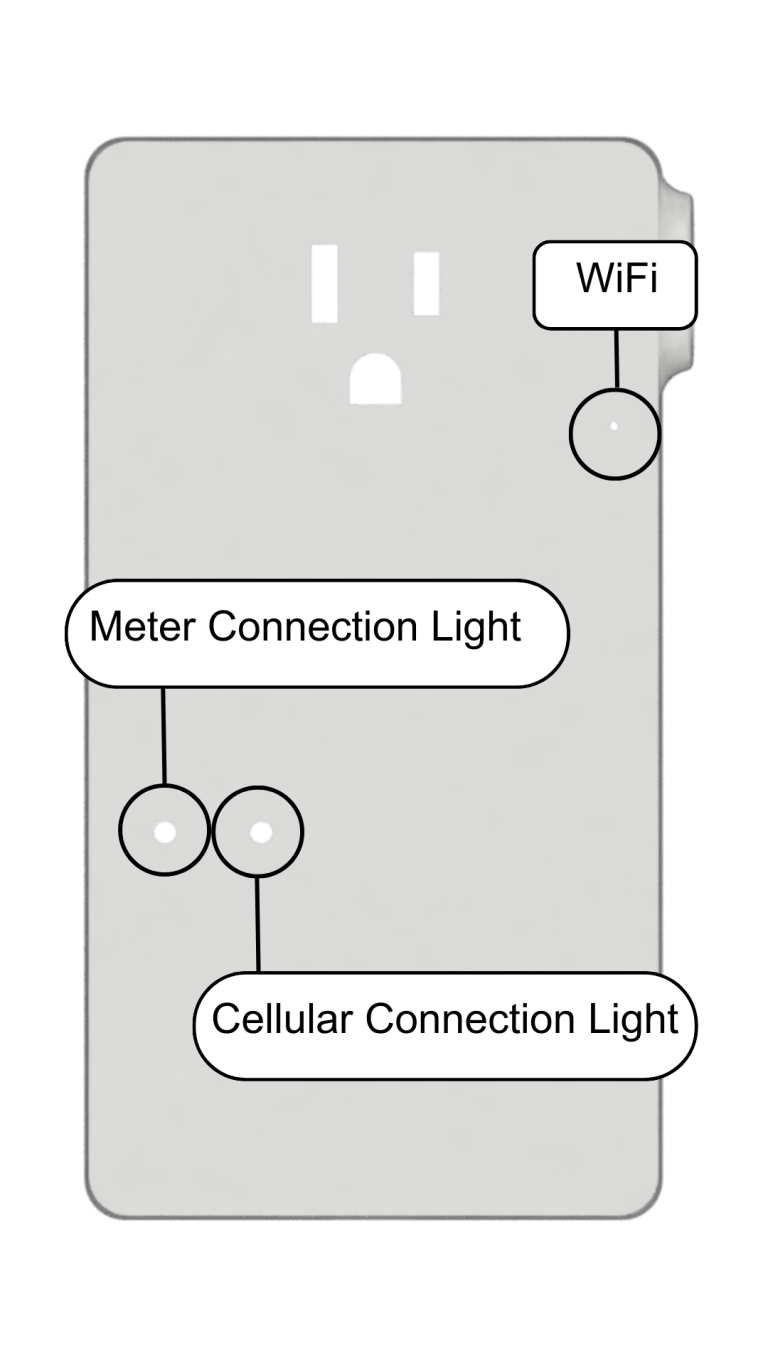

LED indicators under normal working state: WiFI Light is OFF and Meter and Cellular Lights are GREEN
LED Indicator
Code
What it Indicates
WiFi Light
Blinking Blue
The device has not yet been set up on WiFi
WiFi Light
Green
The socket in the device is powered
Meter Light
Blinking Red
Not connected to the meter
Meter Light
Solid Green
Connected to the meter
Cellular Light
Blinking Red
Not connected to the network
Cellular Light
Solid Red
Very poor connection to the network
Cellular Light
Solid Yellow
Poor connection to the network
Cellular Light
Solid Green
Connected to the network

Safety Information

WARNING: For indoor use only. Do not use in wet locations. The total current limit of the device is 15 Amp. To avoid damage, do not exceed the 15 Amps limit. If a direct short is created on the output, the Power Awareness Device will be damaged and no longer function. Do not disassemble the product or make repairs yourself. You run the risk of electric shock and voiding the limited warranty.

Need help? Please contact DTE Customer Support at 313.450.9565

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference.
  2. This device must accept any interference received, including interference that may cause undesired operation.

Note: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  1. Reorient or relocate the receiving antenna.
  2. Increase the separation between the equipment and receiver.
  3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  4. Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

IC 20CM RF

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.

Cet équipement est conforme aux limites d’exposition aux rayonnements de la IC établies pour un environnement non contrôé. Cet équipement doit être installé et fonctionner à au moins 20 cm de distance d’un radiateur ou de votre corps.
